Snap

What It Does

The Snap node rounds a value to the nearest multiple of an increment, with an optional base offset. It's useful for creating grids, aligning values to specific intervals, and implementing design systems with consistent spacing.

Inputs

Name	Description	Type	Required
Value	The value to snap	Number	No
Increment	The step size to snap to	Number	No
Base	The starting point of the snap grid	Number	No
Method	How to round values: "round", "floor", or "ceil"	Text	No

Outputs

Name	Description	Type
Snapped	The value snapped to the nearest increment from the base	Number

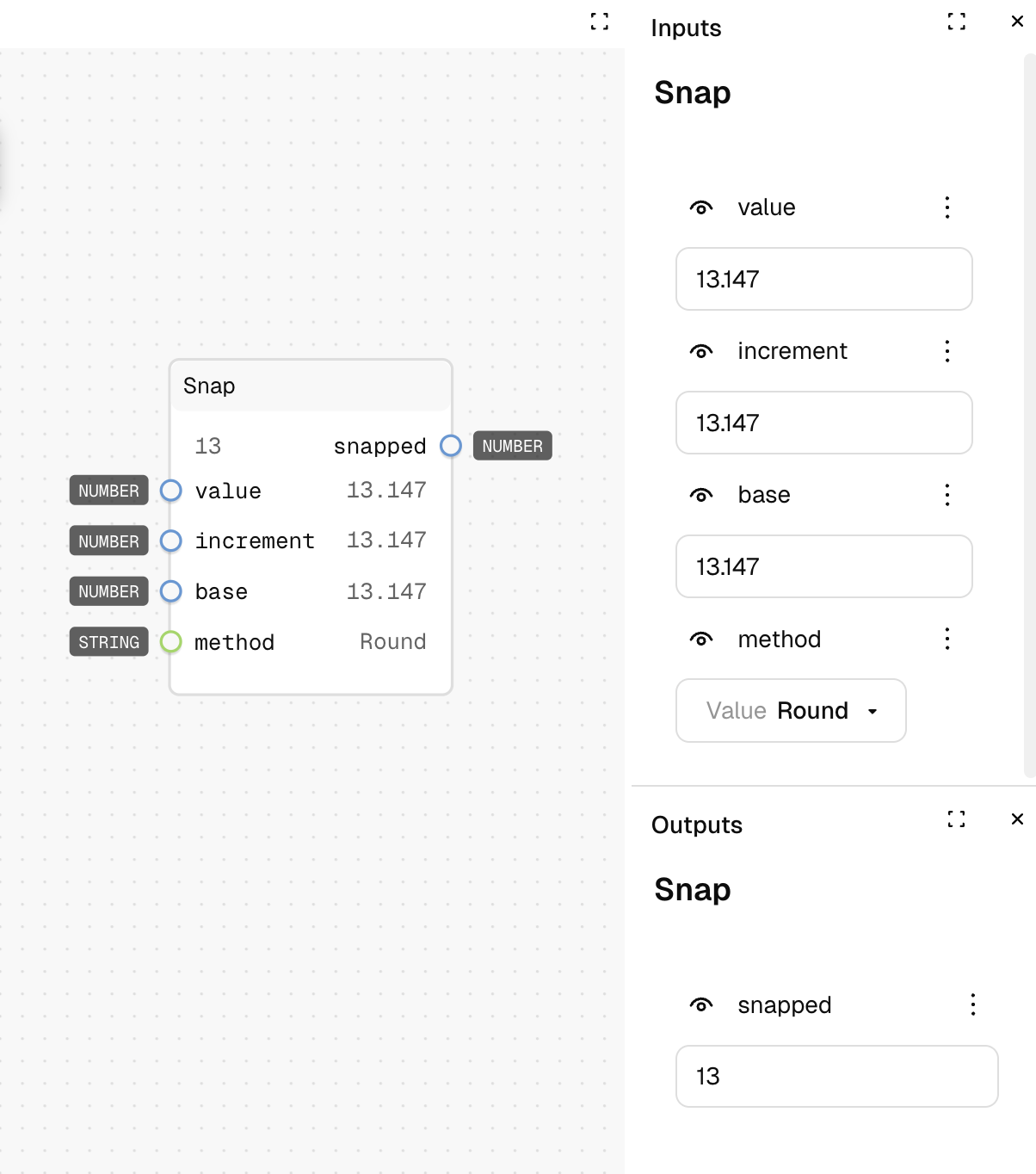

Snap Example

How to Use It

1. Drag the Snap node into your graph.

2. Connect a number to the "Value" input, or use the default (3).

3. Set your desired "Increment" (default 2) and "Base" (default 0).

4. Choose a "Method" for rounding: round (nearest), floor (lower), or ceil (higher).

5. The output will be the value snapped to your defined grid.

Tips

• Use "floor" to always snap down, "ceil" to always snap up, or "round" for nearest.

• For a grid starting at 0 with increment 8, values will snap to 0, 8, 16, 24, etc.

• With a base of 4 and increment 8, values will snap to 4, 12, 20, 28, etc.

See Also

• Round: For simple rounding without custom increments.

• Floor: For always rounding down to the nearest integer.

• Ceil: For always rounding up to the nearest integer.

Use Cases

• Grid Alignment: Snap positions to a grid for clean layouts.

• Consistent Spacing: Ensure spacing values follow your design system increments.

• Value Quantization: Convert continuous inputs to discrete steps (like music notes).
