Types

Why Strong Typing Matters

Every port in the Graph Engine is strongly typed, meaning it only accepts specific data types (e.g., a "number" port won’t take a "color"). This keeps your graphs reliable by:

• Catching mistakes early (e.g., no connecting a string to a math node).

• Ensuring predictable outputs for design tokens or code.

• Making complex systems easier to debug and scale.

What Are Types?

Types define what kind of data a port handles—like "number" for 42, "color" for #FF5733, or "array" for a list. They’re the rules that keep your graph running smoothly.

How to Identify the Type of an Input or Output

Ports use visual cues:

• Colors: Show the type (see legend from the Top Action Bar > Layout > Legend ):

  • Red: Color

  • Magenta: Curve

  • Green: String

  • Gold: Boolean

  • Blue: Number

  • Teal: Object

  • Purple: Any

• Shapes:

  • Dot: Single value (e.g., one color).

  • Square: Array (e.g., list of colors). Hovering over a port shows its type label (e.g., "color") if "Port Types" is enabled in settings.

• Type Labels:

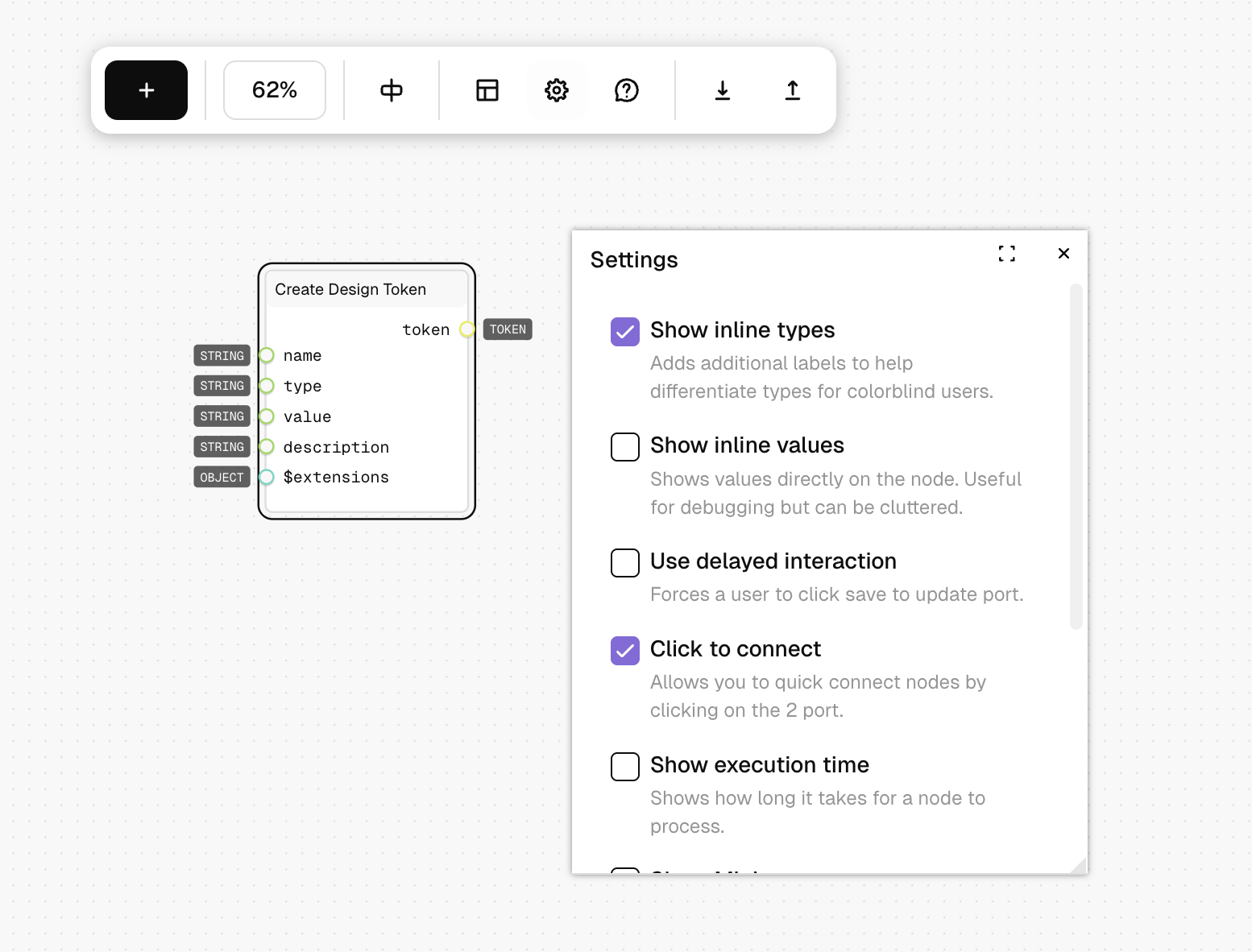

  • Enable the labels for Port to easily identify the type. This can be done from Top Action Bar > Graph Setting > Show Inline Types.

Supported Types

Here’s what you’ll work with:

• Number: Integers or decimals (e.g., 5, 3.14).

• String: Text (e.g., "bold", "#FF5733").

• Color: Color objects (e.g., RGB, HSL formats).

• Array: Lists (e.g., [10, 20, 30], ["#FF5733", "#33FF57"]).

• Object: Key-value pairs (e.g., { "primary": "#FF5733" }).

• Boolean: True/false.

• Token Set: A special type for design token collections (e.g., a JSON-like structure).

Type Conversion

Mismatched types block connections, but conversion nodes fix this:

• Why It’s Needed:

  • Example: A "Color Generator" outputs a color object, but a "Create Design Token" needs a hex string. They won’t connect directly.

• How to Convert:

  • Scenario: Convert a color to a hex string.

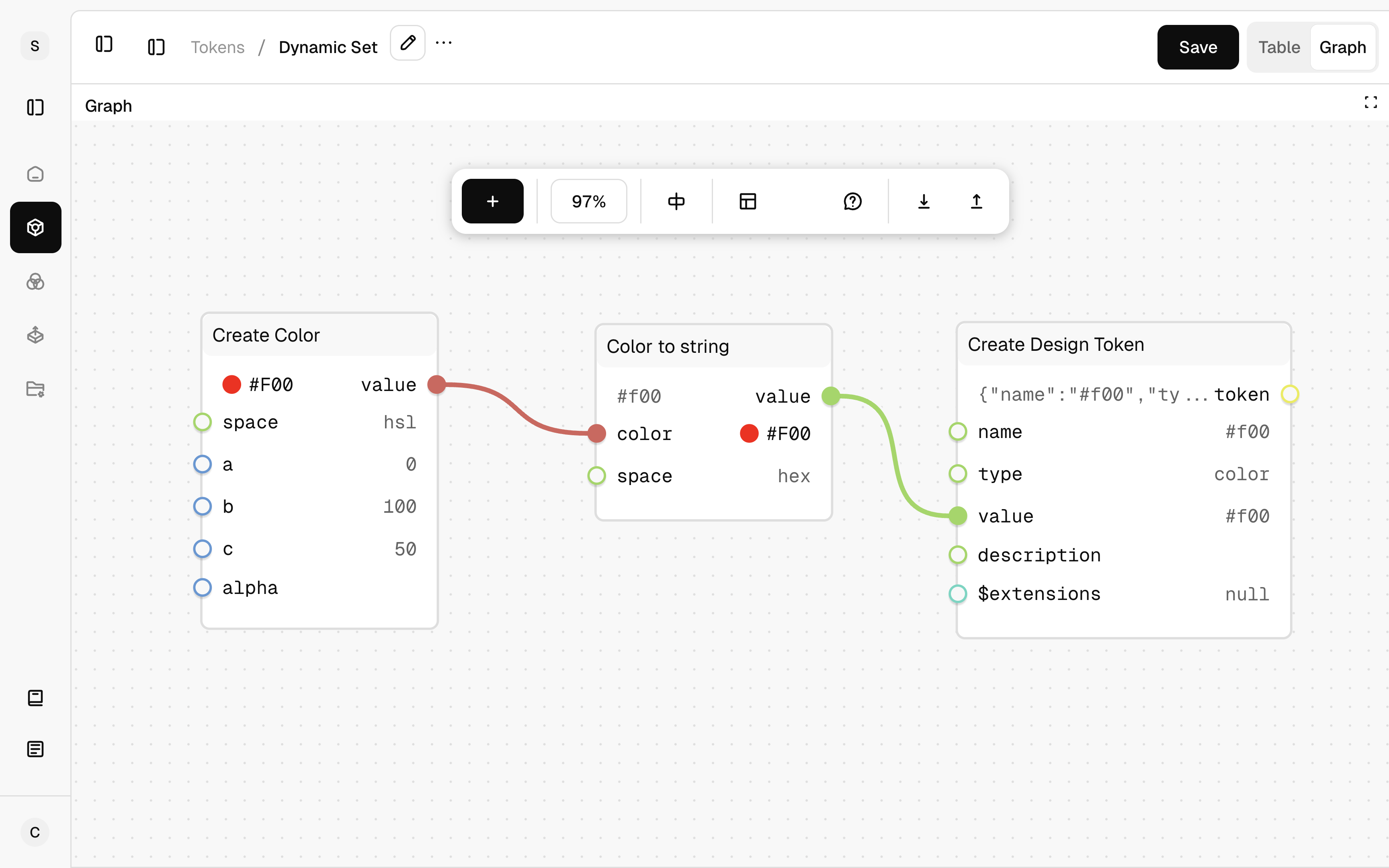

    1. Connect the "Create Color" output (color) to a "Color to String" node’s input.

    2. The node outputs a hex string (e.g., "#FF5733").

    3. Plug this into the "Create Design Token" input, which now works.

  • Other Conversions: "Stringify" (e.g., 10 → "10").
