Arithmetic Series
What It Does
The Arithmetic Series node generates a sequence of numbers where each value increases or decreases by a constant amount. It creates evenly-spaced numerical progressions for scales, grids, and other design patterns.
Inputs
| Name | Description | Type | Required |
|---|---|---|---|
| Base | The central value of the series | Number | No |
| Steps Down | Number of steps to generate below the base value | Number | No |
| Steps Up | Number of steps to generate above the base value | Number | No |
| Increment | The constant value to add/subtract between steps | Number | No |
| Precision | Number of decimal places for the output values | Number | No |
Outputs
| Name | Description | Type |
|---|---|---|
| Array | The resulting sequence of numbers | List |
| Indexed | Array of objects with index and value properties | List |

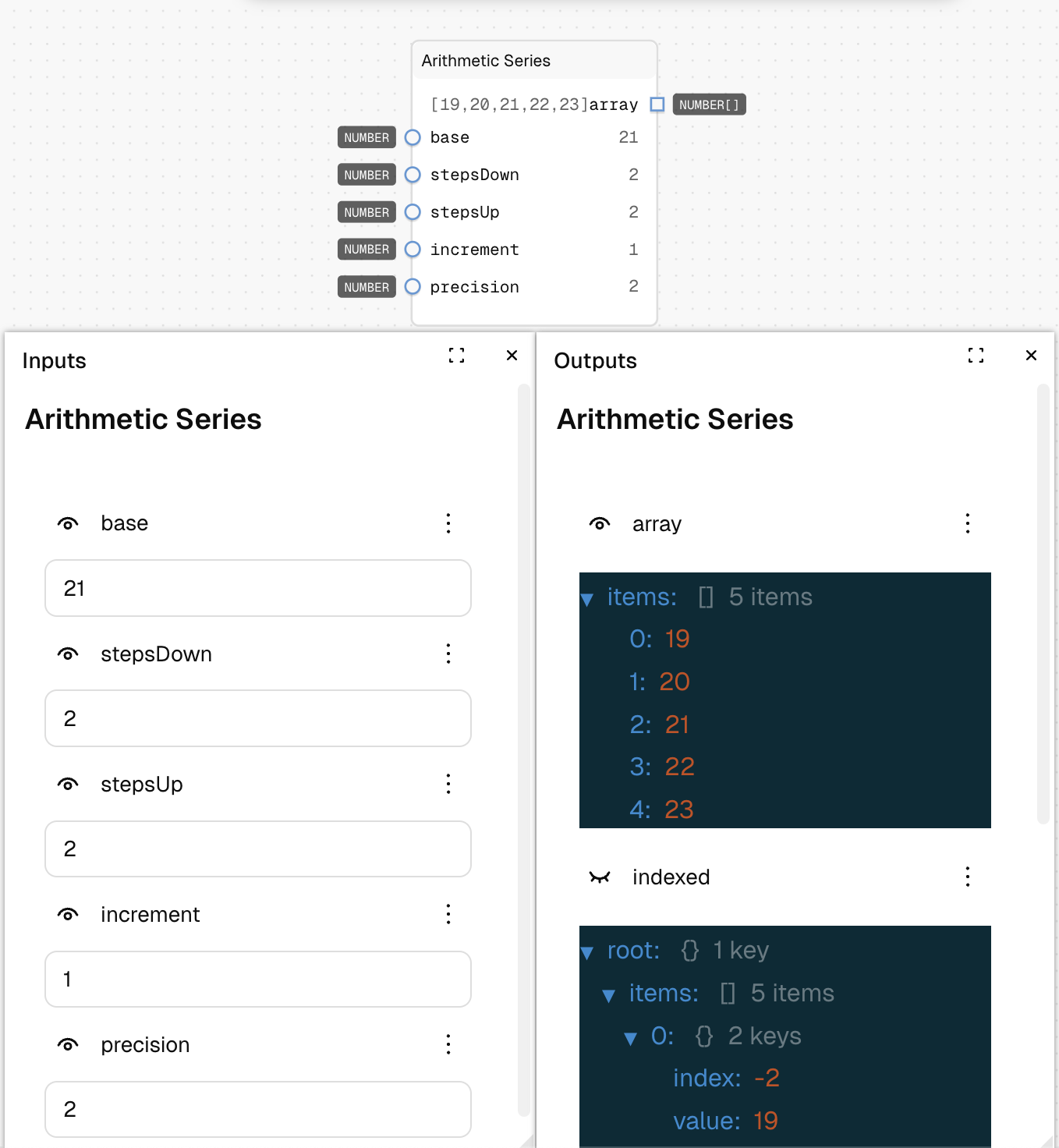

How to Use It
- Drag the Arithmetic Series node into your graph.
- Set the "Base " value
21(default: 16) as the center point of your series. - Configure "Steps Down" (default: 0) and "Steps Up" (default: 1) to control series length.
- Adjust the "Increment" (default: 1) to set spacing between values.
Tips
- The "Steps Down" parameter generates values below your base (smaller values).
- The "Steps Up" parameter generates values above your base (larger values).
See Also
- Geometric Series: For creating exponential progressions where values multiply by a ratio.
- Linear Space: For creating evenly spaced values between specific endpoints.
Use Cases
- Spacing Systems: Create evenly-spaced size tokens for layout grids (4, 8, 12, 16, 20, 24).
- Font Size Scales: Generate linear type scales (12, 14, 16, 18, 20px).
- Color Steps: Define evenly-spaced opacity or intensity values (0.2, 0.4, 0.6, 0.8).
