Split String

What It Does

Divides a text string into smaller parts based on a separator character or string. This is useful for breaking comma-separated lists, space-separated words, or any delimited text into individual items.

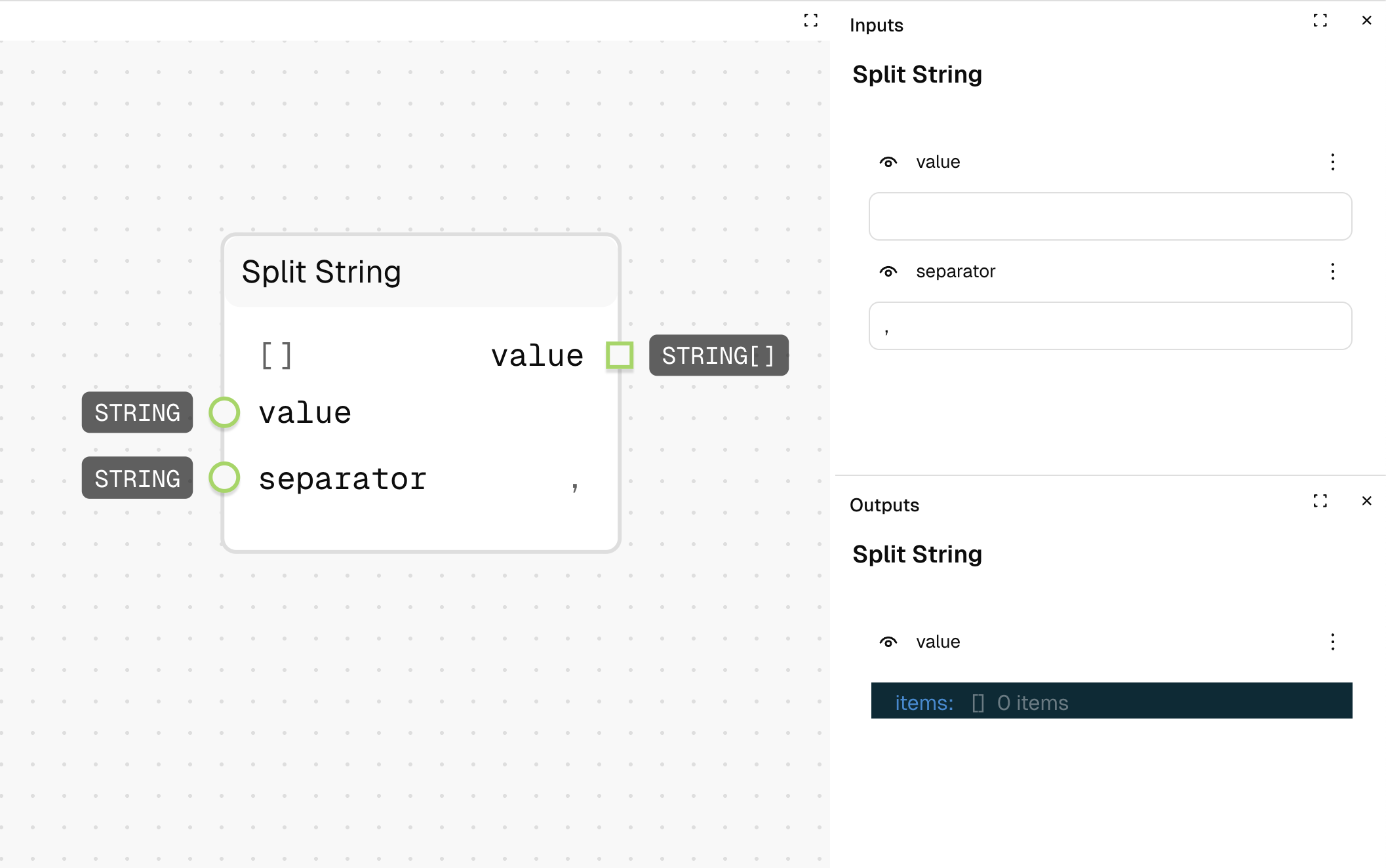

Inputs

Name	Description	Type	Required
value	The text to split into parts	String	Yes
separator	The character or string that marks where to split	String	No

Outputs

Name	Description	Type
value	An array containing the separated parts	List

How to Use It

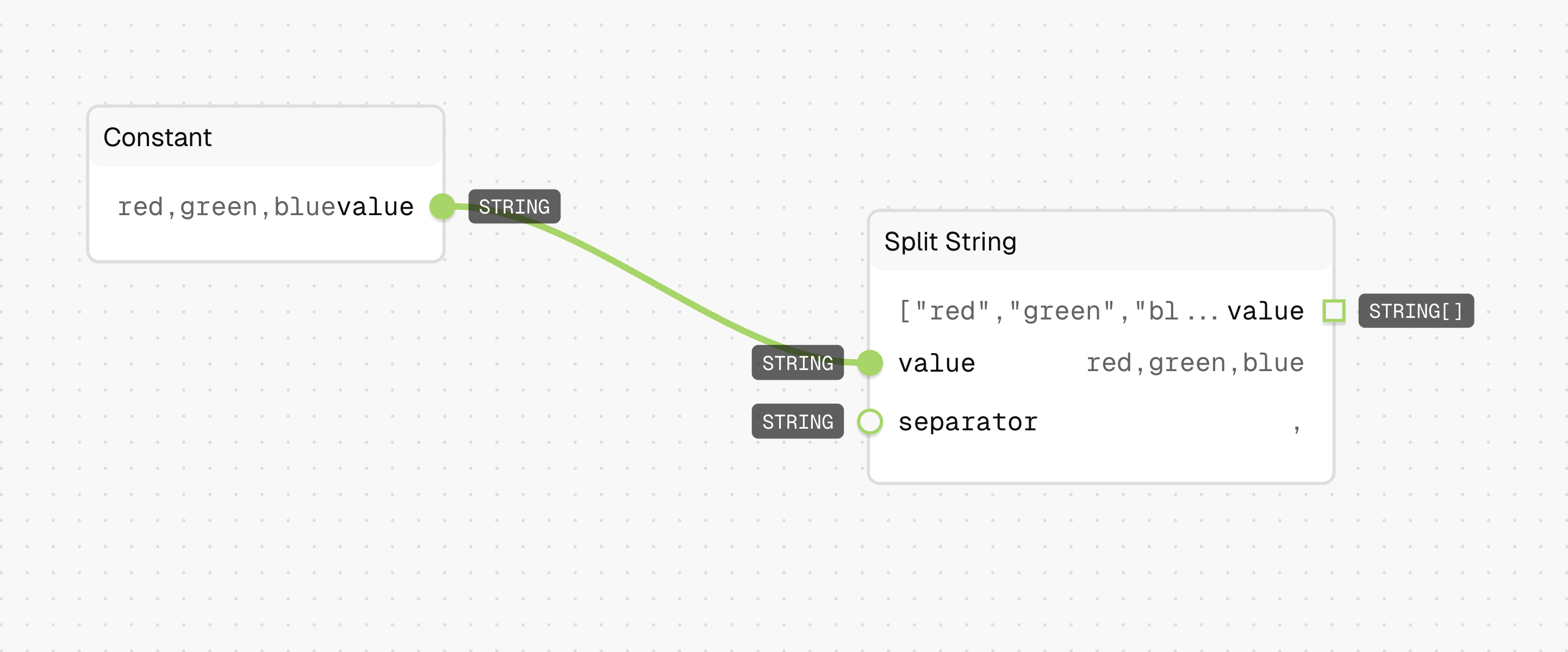

1. Drag the Split String node into your graph.
2. Connect a text string (like "red,green,blue") to the "value" input.
3. Set the "separator" to the character that divides your items (like ",").
4. The output will be a list of individual items (["red", "green", "blue"]).

Tips

• The default separator is a comma (,).
• If the separator is not found in the input string, the output will be an array with just the original string.

See Also

• Join Array: For the reverse operation—combining array items into a single string.
• Array Find: For searching through the resulting array of items.

Use Cases

• Tag Processing: Split a list of tags into individual items for filtering or display.
• Data Parsing: Extract individual values from formatted text like CSV data.
• Path Handling: Break file paths or URLs into their component parts.
