  1. GRAPH ENGINE
  2. Available Nodes
  3. Array

Flatten

PreviousConcatNextIndex Array

Last updated 7 days ago

What It Does

Flattens an array of arrays into a single level array, combining all nested elements into one unified list.

Inputs

Name
Description
Type
Required

array

The nested list to flatten

List

Yes

Outputs

Name
Description
Type

array

The resulting flattened list

List

How to Use It

  1. Drag the Array flatten node into your graph.

  2. Connect a nested list (like [[1, 2], [3, 4]]) to the "array" input.

  3. The node will output a single flattened list (like [1, 2, 3, 4]).

Tips

  • This node only flattens one level deep, not recursively through all nested arrays.

  • Make sure your input is actually an array of arrays, or the node will throw an error.

See Also

Use Cases

  • Merging Token Groups: Combine nested token groups into a flat structure for easier processing.

  • Simplifying Data Structures: Convert complex nested lists of values into a simpler format for operations.

  • Processing Multi-dimensional Data: Transform grid-based data into a linear sequence for sequential processing.

: For converting any value into an array format.

: For joining multiple arrays together end-to-end.

Arrify
Concat

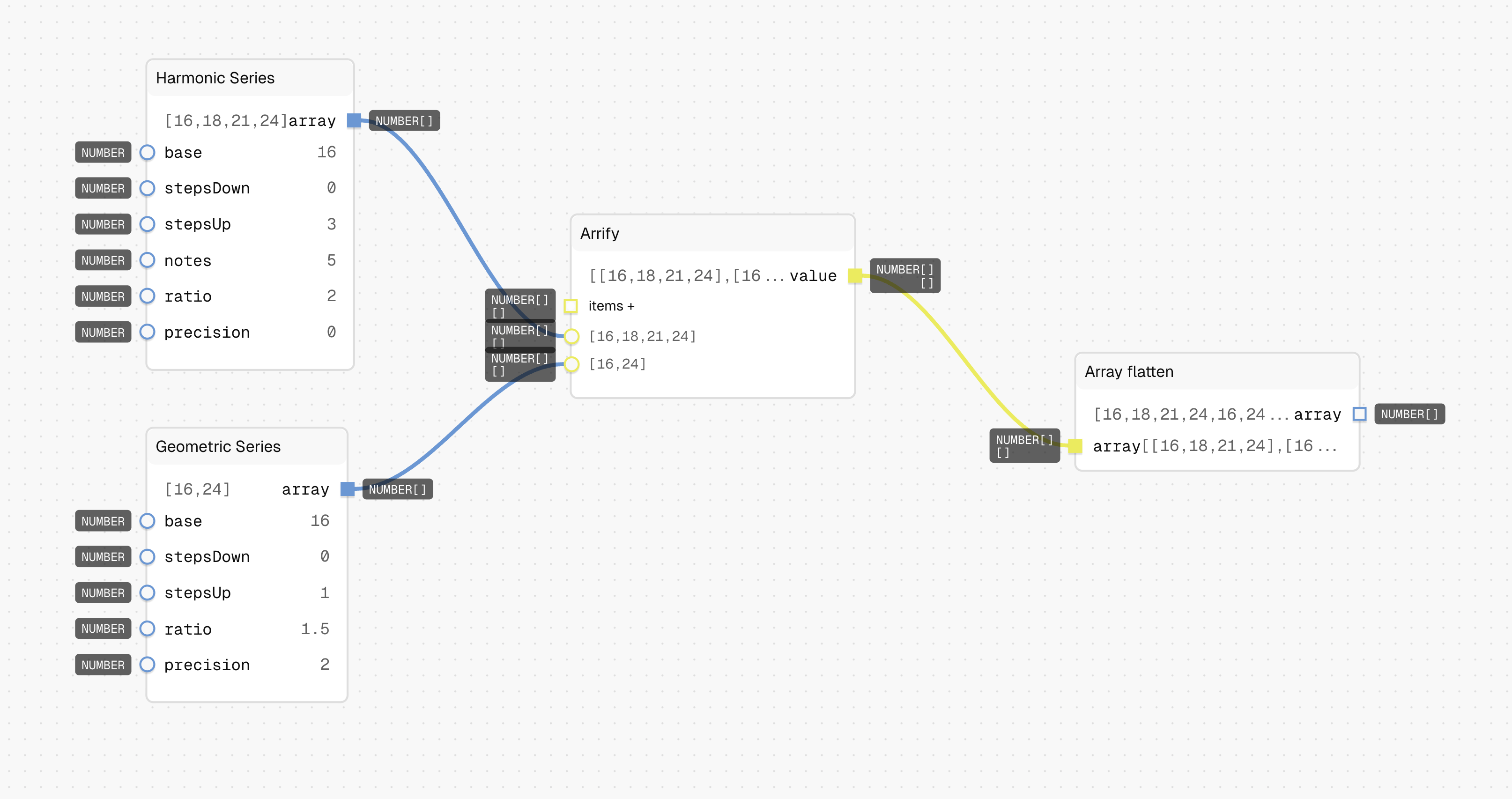

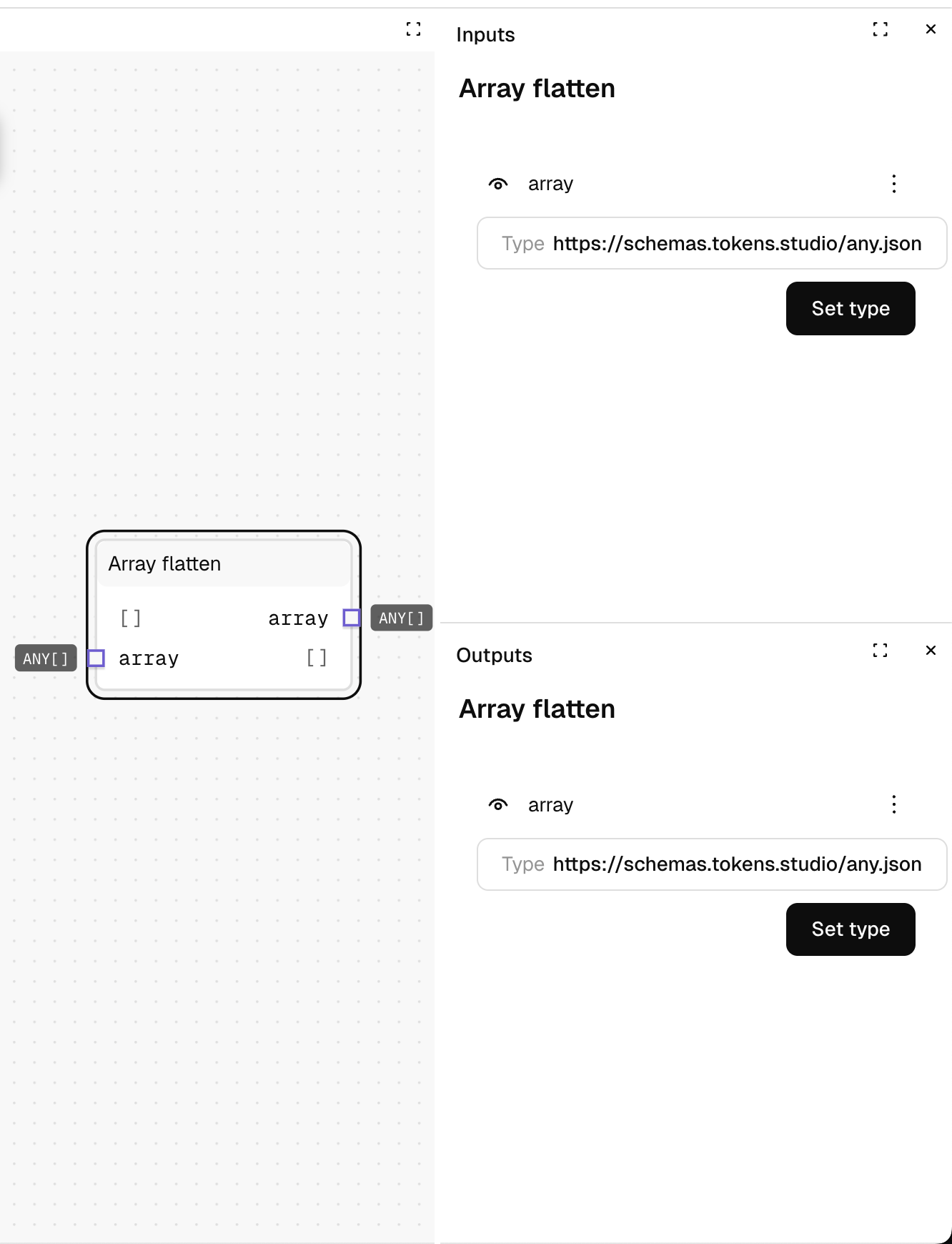

Array flatten Example
