Contrasting Alpha
What It Does
The Contrasting Alpha node adjusts a color's transparency until it reaches a target contrast ratio with a background. It uses binary search to find the optimal alpha value that provides the desired contrast level.
Inputs
| Name | Description | Type | Required |
|---|---|---|---|
| Foreground | The color to adjust transparency for | Color | No |
| Background | The background color to test contrast against | Color | No |
| Algorithm | Contrast calculation method (APCA is default) | String | No |
| Threshold | Target contrast value to achieve | Number | No |
| Precision | Number of binary search iterations (higher = more precise) | Number | No |
Outputs
| Name | Description | Type |
|---|---|---|
| Alpha | The calculated alpha value (0-1) | Number |
| Color | The resulting color with adjusted transparency | Color |
| Contrast | The actual contrast ratio achieved | Number |
How to Use It
- Drag the Contrasting Alpha node into your graph.

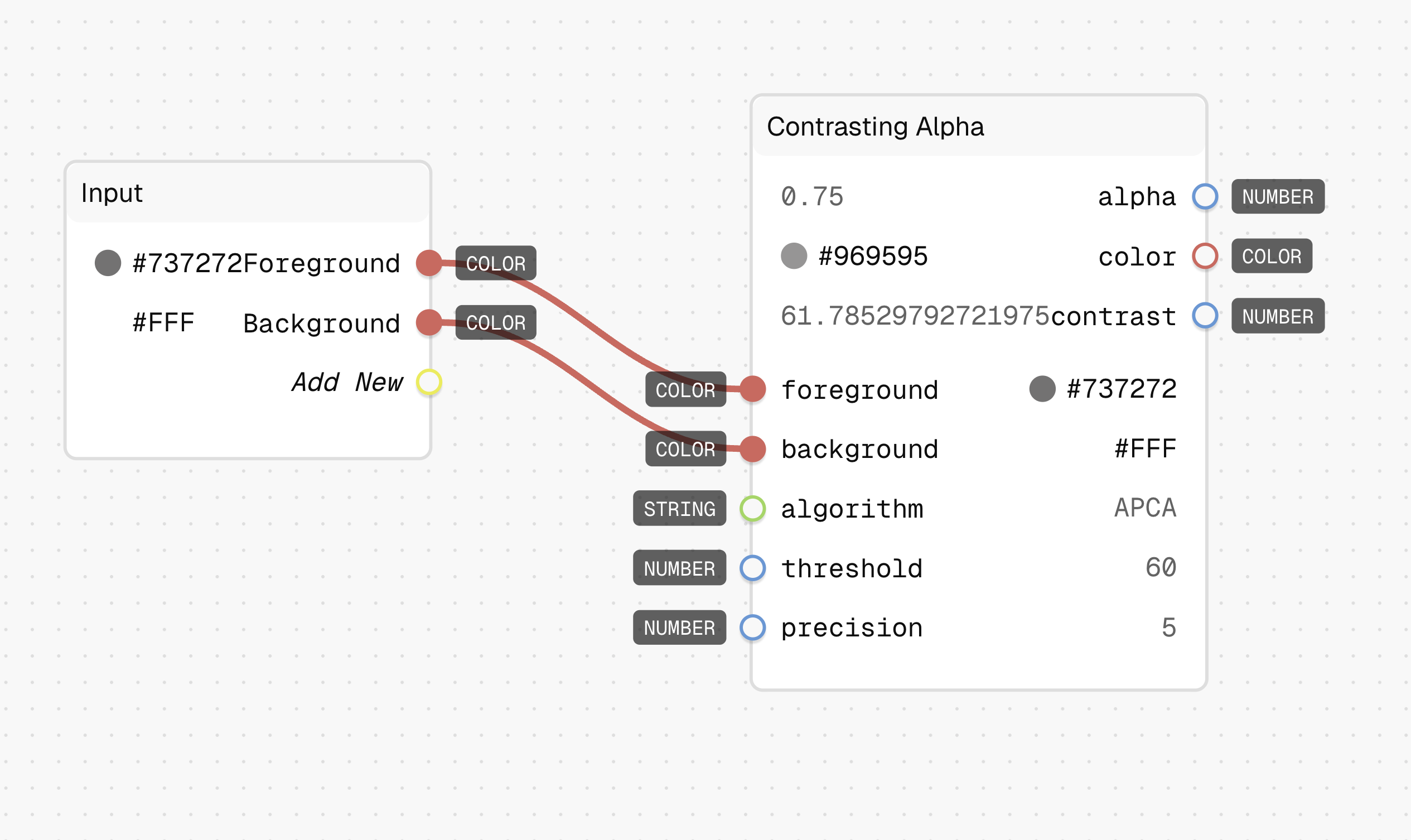

- Connect a foreground color (like
#737272) and background color (like#FFF). - Set your desired contrast threshold (default: 60).
- Adjust precision if needed (default: 5 iterations).

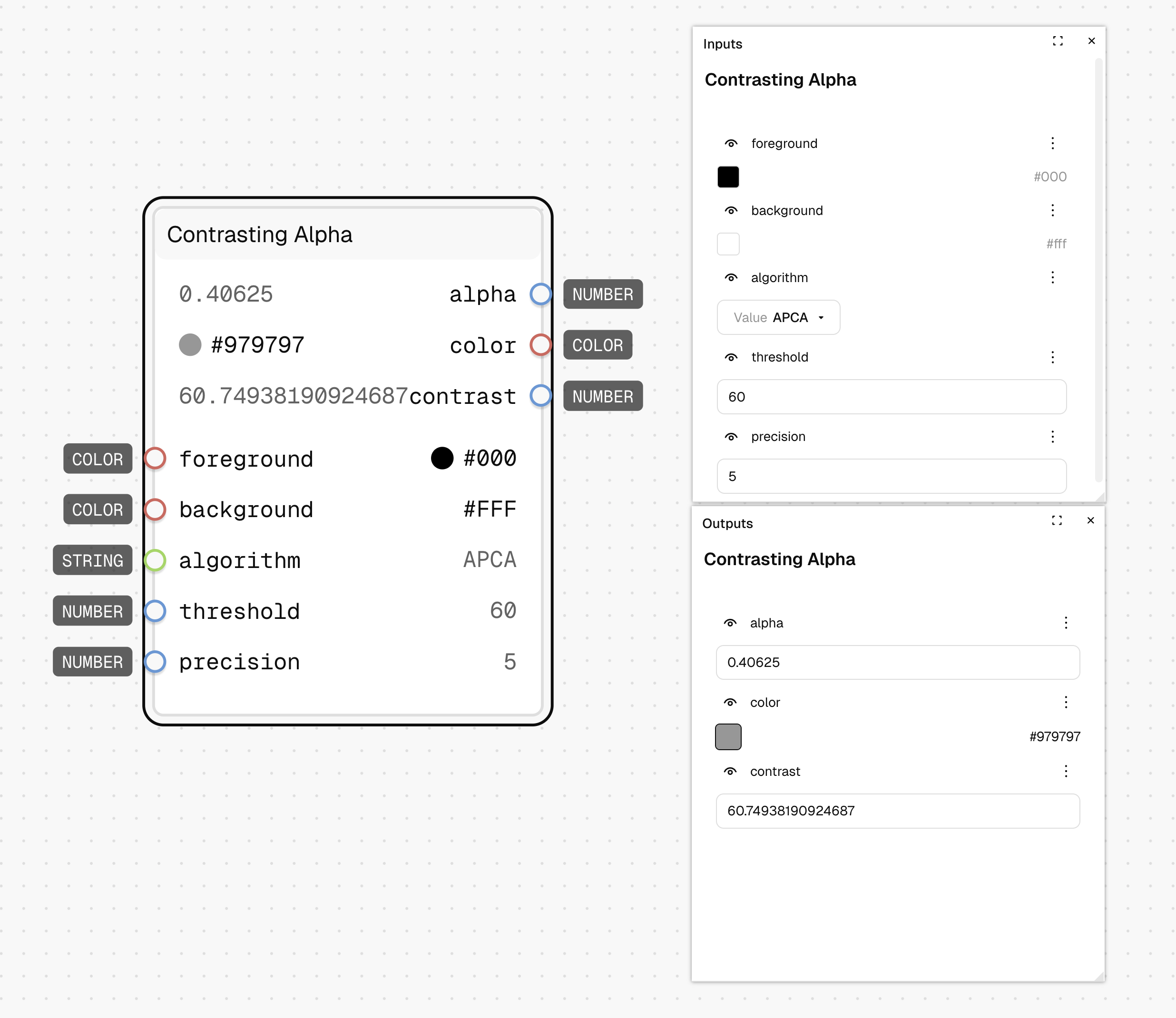

- The node outputs the color with adjusted alpha, the alpha value, and the resulting contrast.
Tips
- Higher precision values give more accurate results but may increase processing time.
- This node is useful for ensuring text remains readable while maintaining some transparency.
See Also
- Contrast: For measuring contrast between two colors.
- Contrasting Color: For selecting between two colors based on contrast.
- Flatten Alpha: For removing transparency from a color.
Use Cases
- Semi-Transparent UI Elements: Create overlay panels that maintain text readability.
- Accessible Design: Ensure text with transparency meets accessibility standards.
- Dynamic Backgrounds: Automatically adjust text opacity based on varying background colors.
